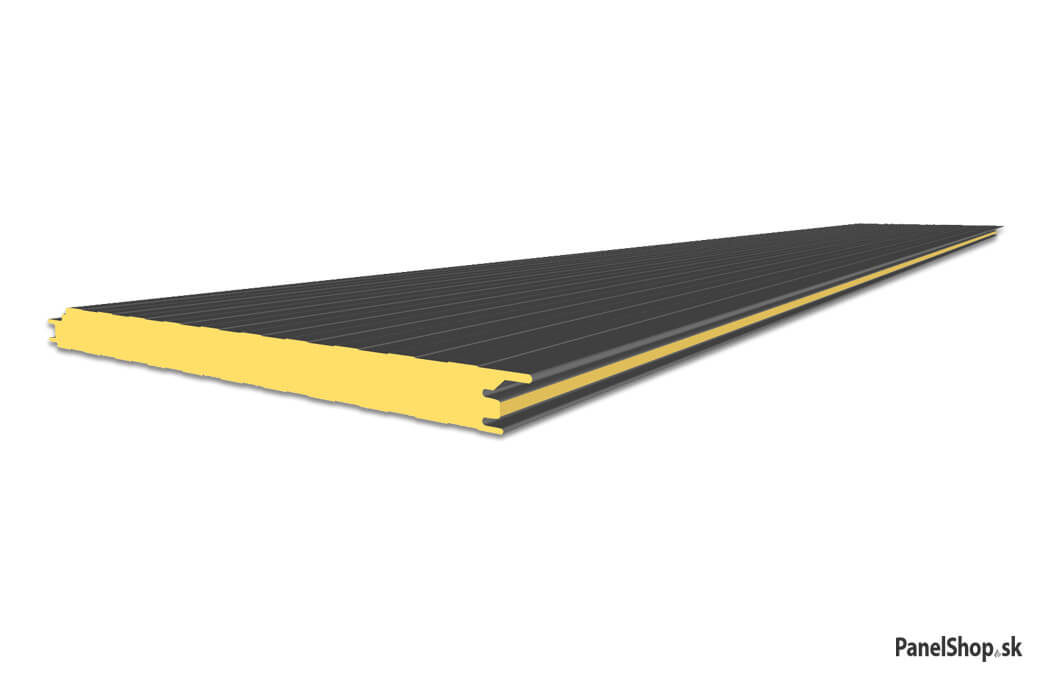

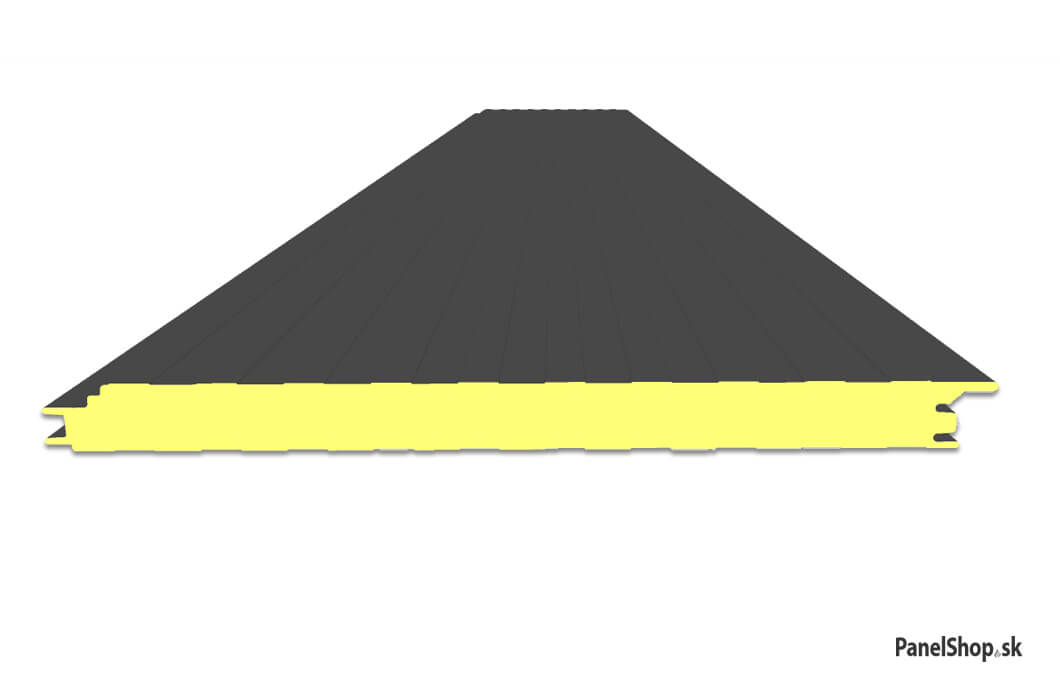

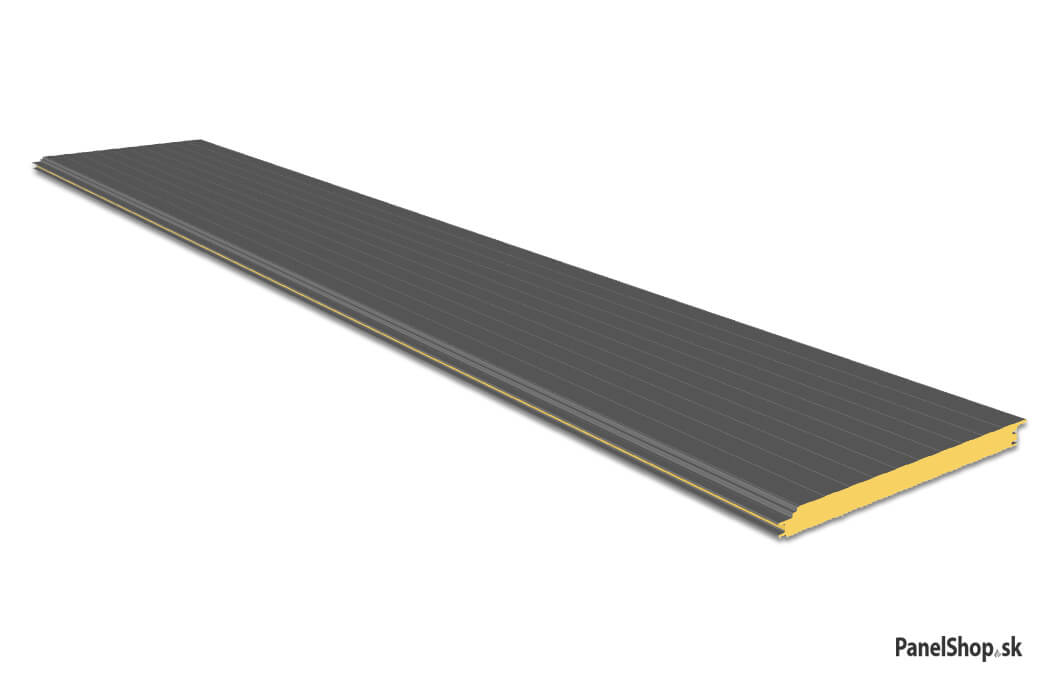

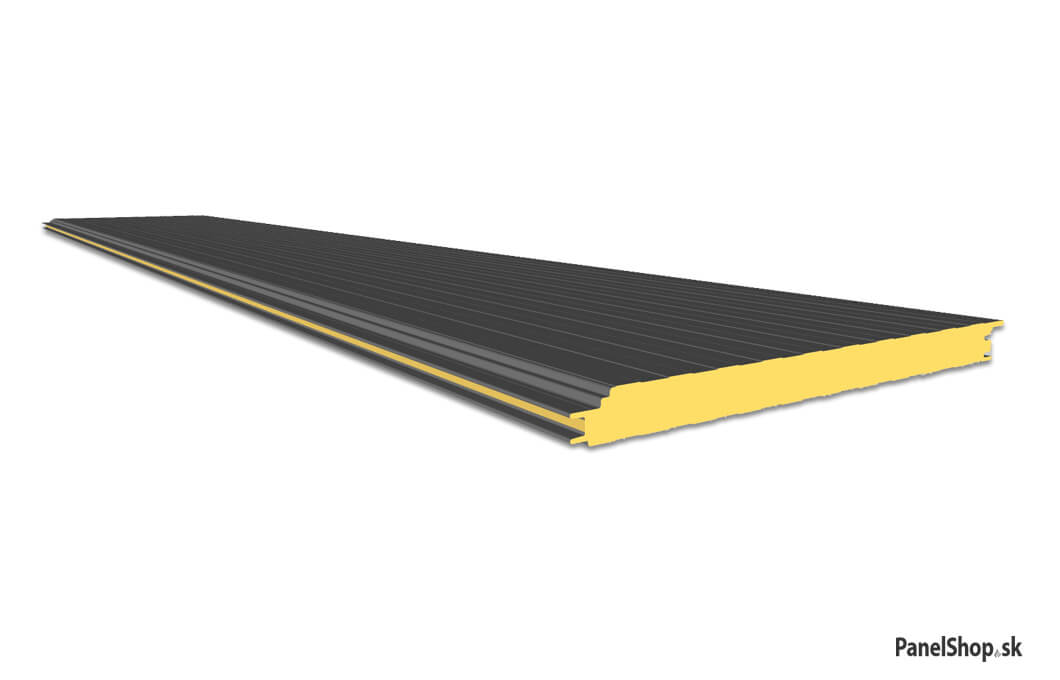

Sandwich panel with polyisocyanurate PIR core – facade (hidden joint)

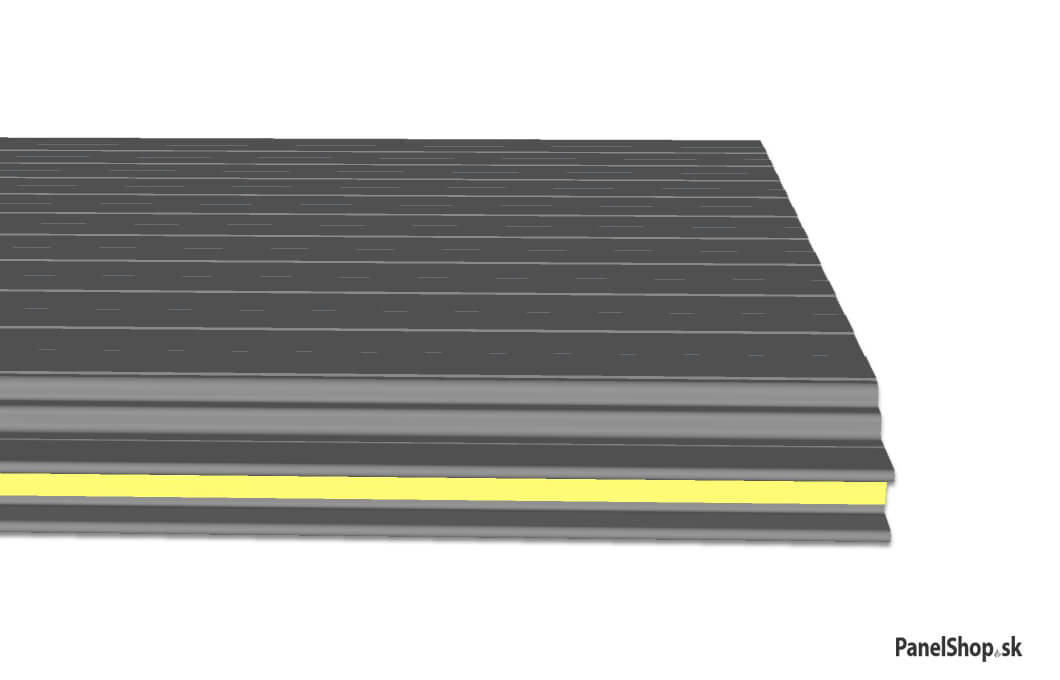

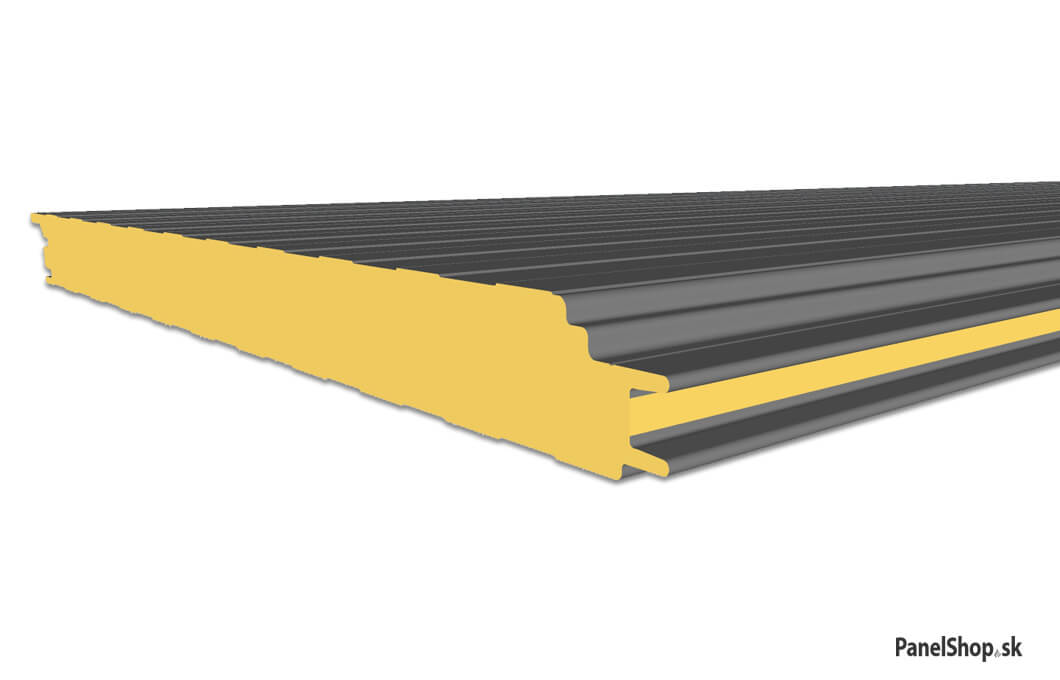

The sandwich panel consists of two colored, galvanized, profiled steel sheets and polyisocyanurate (PIR) filling. The thickness of the sheets can be from 0.4 mm to 0.7 mm. By default, the sheet thickness is 0.5/0.4mm with a 25/15μ surface finish. The joint is hidden along the panel and ensures the aesthetic appearance of the cladding.
These panels are widely used in the construction of buildings, storage areas, industrial and manufacturing warehouses, commercial areas, car showrooms, car repair shops, garages, agricultural warehouses and halls.
The panels are designed to cover interior, exterior walls and ceiling skeleton structures.
24€ / 100mm / m2 (the price is indicative)
Delivery time – within 5 weeks
Product code: SP002
Payment is made by advances to the company account 50% in advance and 50% after the panels are in stock.
Technical information about the panel
In the table you will find all the important technical information about the given sandwich panel, on the basis of which you can correctly decide what kind of panel you need. When ordering, it is important to know: thickness, type-type-joint, plating profile (external, internal), area in m2, number of pieces (pcs) and lengths (e.g. 8pcs-10m long) and, of course, color in RAL shade.
| Mechanical Properties | M.p. | M.p. | M.p. | M.p. |
|---|---|---|---|---|
| thickness [mm] | 60 mm | 80mm | 100mm | 120 mm |
| modular width [mm] | 1000, 1080 | 1000, 1080 | 1000, 1080 | 1000, 1080 |
| total width [mm] | modular width + 18 mm | modular width + 18 mm | modular width + 18 mm | modular width + 18 mm |
| length [mm] | 2000 – 18000* | 2000 – 18000* | 2000 – 18000* | 2000 – 18000* |
| weight 0.5 / 0.4 [kg / m2] | 10.0 | 10.8 | 11.6 | 12.4 |
| Profile (external) | smooth, linear, groove, microlinear, microwave, microgroove, clearline | –//– (repeats) | –//– (repeats) | –//– (repeats) |
| Profile (internal) | linear, smooth, groove | –//– (repeats) | –//– (repeats) | –//– (repeats) |
| Insulating ability | Ins.abi. | Ins.abi. | Ins.abi. | Ins.abi. |
| U PIR/PIR+ [W/m2K] | 0.42 | 0.29 | 0.22 | 0.19 |
| Fire properties | P.p. | P.p. | P.p. | P.p. |
| PIR fire resistance | – | EI 15 | EI 15 | EI 15 |
| PIR response to fire | B-s2, d0 | B-s2, d0 | B-s2, d0 | B-s2, d0 |
| fire spread | NRO | NRO | NRO | NRO |
| Acoustic Properties | A.p. | A.p. | A.p. | A.p. |
| acoustic resistance coefficient: | Rw [dB] 26, RA1 [dB] 23< /span>, RA2 [dB] 21 | Rw [dB] 26, RA1 [dB] 23< /span>, RA2 [dB] 21 | Rw [dB] 26, RA1 [dB] 23< /span>, RA2 [dB] 21 | Rw [dB] 26, RA1 [dB] 23< /span>, RA2 [dB] 21 |
| acoustic absorption coefficient αw | 0.15 | 0.15 | 0.15 | 0.15 |
| Tightness | T. | T. | T. | T. |
| air permeability: pressure | n = 0.7578, C = 0.0335 | n = 0.7578, C = 0.0335 | n = 0.7578, C = 0.0335 | n = 0.7578, C = 0.0335 |
| air permeability: suction | n = 0.7778, C = 0.0115 | n = 0.7778, C = 0.0115 | n = 0.7778, C = 0.0115 | n = 0.7778, C = 0.0115 |
| resistant to heavy rain | Class A – absolute impermeability at 1200 Pa | –//– (repeats) | –//– (repeats) | –//– (repeats) |
Offered RAL colors
standard colors
premium colors
special colors
(Color must always be confirmed based on availability)
Delivery and Payment
Delivery time is from 3-6 weeks to your desired address. (The delivery time is specified after entering the final order.) Payment is made by advance payments to the company account 50% in advance and 50% after the panels have been stocked.The minimum demand is 80m2.
Bank: Slovenská Sporiteľňa, Account number (IBAN): SK53 0900 0000 0003 2426 4520, BIC SWIFT code: GIBASKBX. Customer service: Mon – Fri: 9:00 to 16:00, +421 910 107 878, info@paneleshop.eu
Accessories offered
Self-tapping screws
TEX self-tapping screws are made of high-grade galvanized steel with a vulcanized and galvanized EPDM backing.
155mm / 100 ks / 58€ (without VAT)
Saddle washers
Used together with standard self-tapping screws with a recommended 16mm washer.
50€ / 26mm / 100 ks (without VAT)
Plating elements
We offer either typed or with the option of your own parameters, where you enter the width, length and angle.
6€ (without VAT) / 1m (price is indicative)
Structural profiles
Thin-walled profiles are intended for use primarily as prisons for ceilings, roofs and walls of steel halls.
2,2€ (without VAT) / 1kg / (the price is indicative)
Sealing tapes
It is used for fast, efficient and aesthetic sealing of joints when plating roofs and sealing of hard metal-to-metal joints in prefabricated constructions in metal structures.
3.5€ without VAT / 10m (roll, 3x20mm)
