(05.1) Eaves masking frame option 2 – Flashing_62
Sheeting for sandwich prefabricated buildings. The maximum length is 6m. The thickness of the sheet is standard 0.5-0.7mm. Option to enter your own parameters.
For aesthetics, protection and proper drainage of rainwater, flashin elements (strips) are used, which are made of colored galvanized sheet with a thickness of 0.5 to 1.25 mm. The inner side has a surface treatment of polyester and the outer side of 25 micrometer (μm) polyester as a standard layer thickness (it can also be a thicker layer for more aggressive environments). The standard length of the sheet is 6 m.
Colors are available in RAL shades as for sandwich panels. Option to enter your own parameters. We have prepared visualizations of the cladding element and examples of placement in our catalog »
6€ ex.VAT/ m (price is indicative)
Delivery time – 1 week
Product code: PO05_01_xxx
We offer the following plating options

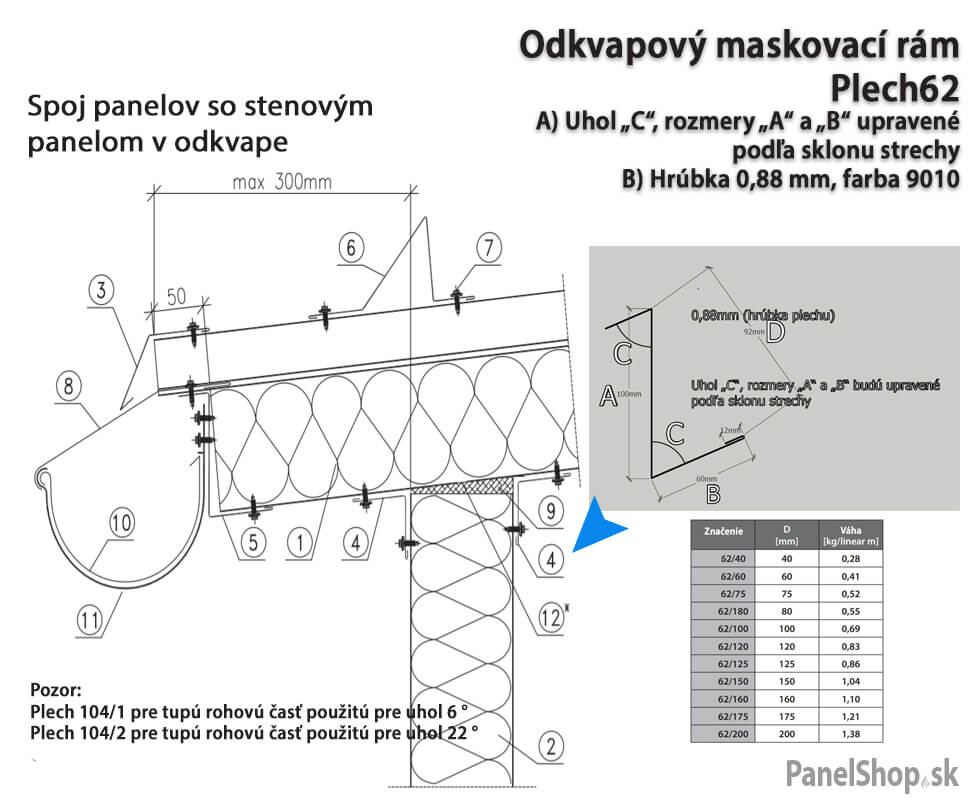

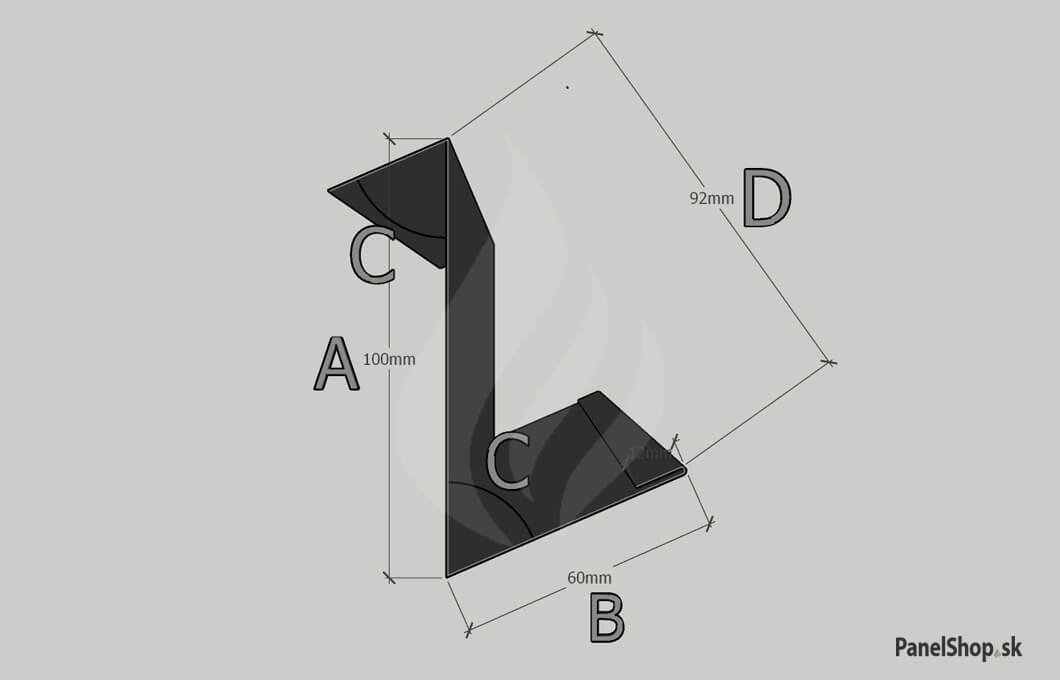

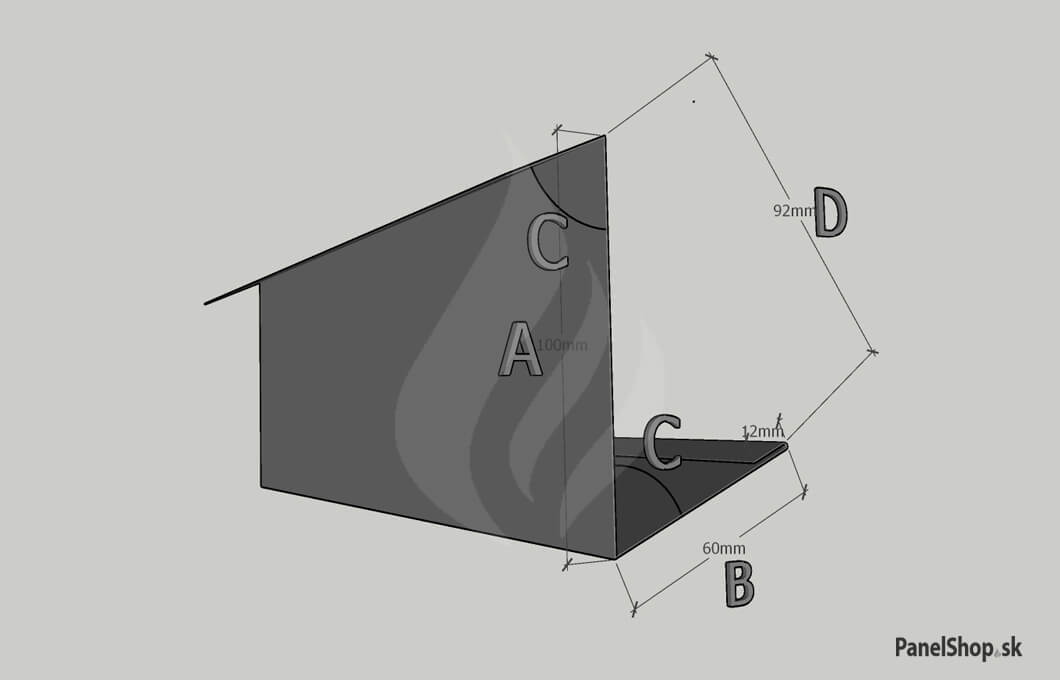

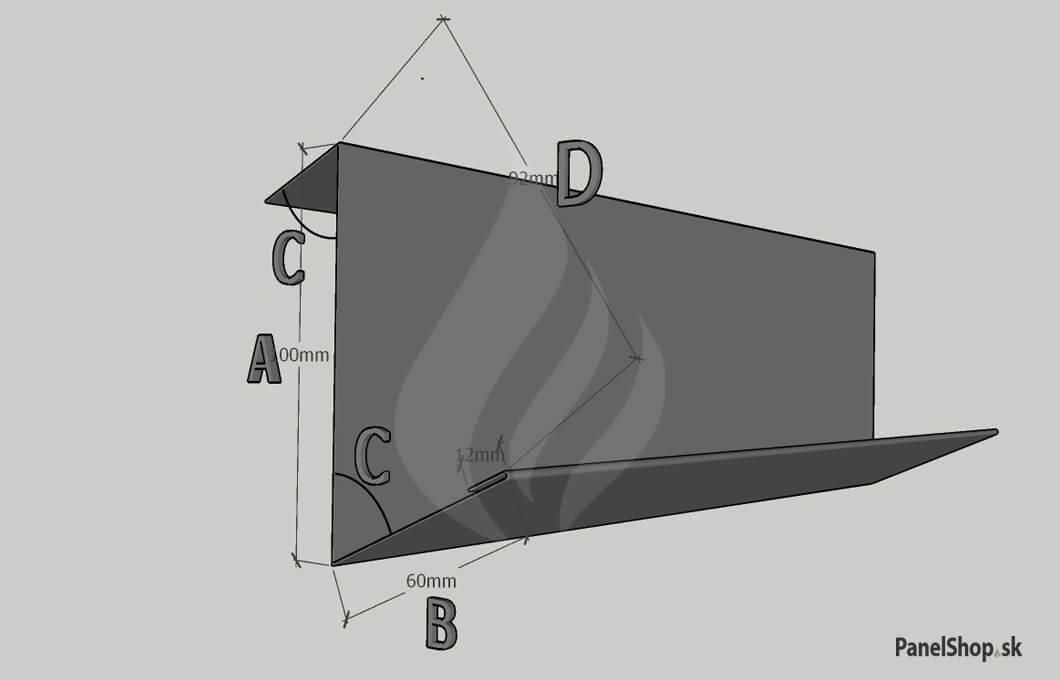

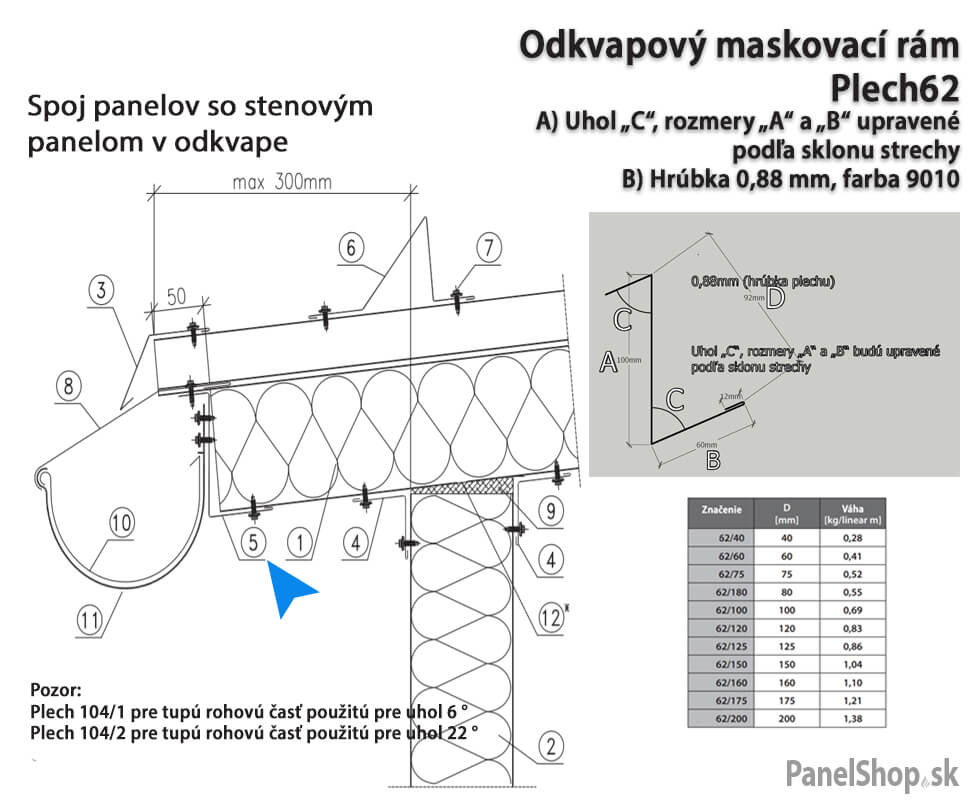

Sheeting – (05.1) Gutter masking frame option 2 – Sheet_62 for sandwich prefabricated buildings. The maximum length is 6m. The thickness of the sheet is standard 0.5-0.7mm. Option to enter your own parameters.
Swipe left on mobiles ›
| Product code | Width D (mm) | α° | Unrolled(mm) | Length (L) | Weight (kg) | Price (excluding VAT) |
|---|---|---|---|---|---|---|
| PO05_01_001 | 40 | – | – | 2500, 6000mm | 0.28 | 6€ ex.VAT/ m (indicative) |
| PO05_01_002 | 60 | – | – | 2500, 6000mm | 0.41 | 6€ ex.VAT/ m (indicative) |
| PO05_01_003 | 75 | – | – | 2500, 6000mm | 0.52 | 6€ ex.VAT/ m (indicative) |
| PO05_01_004 | 80 | – | – | 2500, 6000mm | 0.55 | 6€ ex.VAT/ m (indicative) |
| PO05_01_005 | 100 | – | – | 2500, 6000mm | 0.69 | 6€ ex.VAT/ m (indicative) |
| PO05_01_006 | 120 | – | – | 2500, 6000mm | 0.83 | 6€ ex.VAT/ m (indicative) |
| PO05_01_007 | 125 | – | – | 2500, 6000mm | 0.86 | 6€ ex.VAT/ m (indicative) |
| PO05_01_008 | 150 | – | – | 2500, 6000mm | 1.04 | 6€ ex.VAT/ m (indicative) |
| PO05_01_009 | 160 | – | – | 2500, 6000mm | 1.10 | 6€ ex.VAT/ m (indicative) |
| PO05_01_010 | 175 | – | – | 2500, 6000mm | 1.21 | 6€ ex.VAT/ m (indicative) |
| PO05_01_011 | 200 | – | – | 2500, 6000mm | 1.38 | 6€ ex.VAT/ m (indicative) |
Offered RAL colors
standard colors
premium colors
special colors
Shipment and Payment
Delivery time is from 3-4 weeks to your desired address. (The delivery time is specified after entering the final order.) Payment is made by advance payments to the company account. The shipping price will be specified in the price offer. Shipping is free when ordered and delivered together with sandwich panels.
Bank: Slovenská Sporiteľňa. Account number (IBAN): SK53 0900 0000 0003 2426 4520. BIC SWIFT code: GIBASKBX. Customer service: Mon – Fri: 9:00 to 16:00, +421 910 107 878, info@paneleshop.eu
Other flashing products
Important information (manuals, catalogs, quality information)
Important information (manuals, catalogs, quality information)
Very high quality technical catalog of sandwich panels
Very high quality technical catalog of sandwich panels
Technical data, examples, visualizations, instructions. We drew on twenty European technical catalogs, which are enriched by our own experience.
Send the technical drawings and we will prepare a price offer!
We need from you everything related to project documentation such as floor plans, sections, views, dimensioned drawings, technical report, accompanying report, dwg files and send to info@paneleshop.eu
