Corner sandwich panel with freezer connection (PIR) – vertical
The main advantage of the corner panel is their assembly without the need for corner sheeting and the creation of architecturally beautiful and aesthetic corners of the cladding of objects.
The sandwich corner panel consists of two colored, galvanized, profiled steel sheets and polyisocyanurate (PIR) filling. The thickness of the sheets can be from 0.4 mm to 0.7 mm. By default, the sheet thickness is 0.5/0.5mm with a 25/25μ surface treatment. The panels are anchored by a freezer joint with a vertical arrangement. The panels are intended for covering interior and exterior walls of skeleton structures.
These panels are widely used in the construction of buildings, warehouses, industrial and production warehouses, commercial premises, car showrooms, car repair shops, garages, agricultural warehouses and halls.
28€ / 120mm / m2 (the price is indicative)

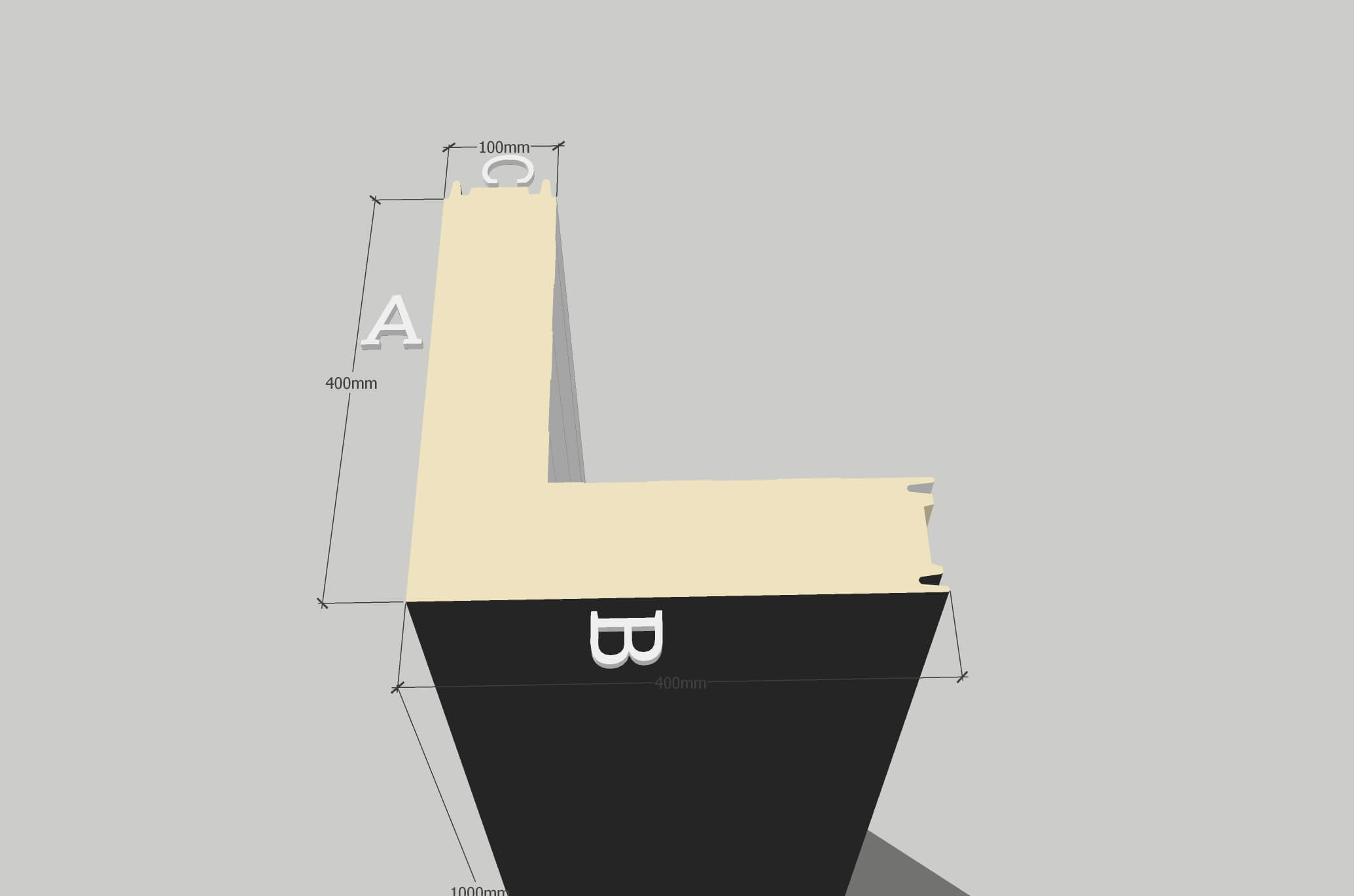

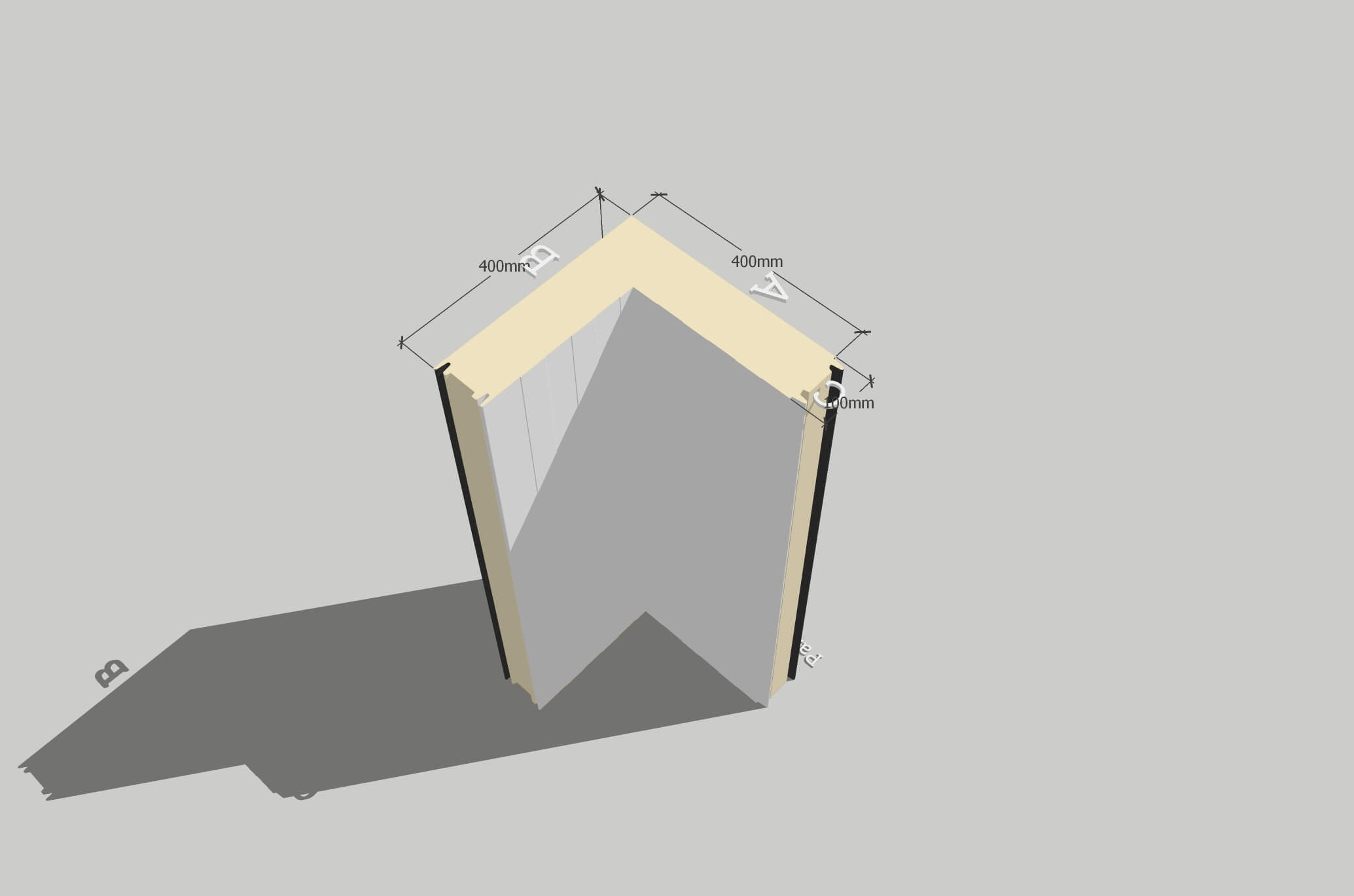

Delivery time – up to 5 weeks, orders together with classic panels over 150m2. The lengths (A,B) must be determined. Shipping is not included in the price of the panels.
Product code: SPR002
Payment is made by advance payments to the company’s account 50% in advance and 50% after the panels are in stock.
watch the video visualization:
Technical information about panels
In the table you can find the main technical parameters of the corner panel.
| Mechanical properties | 120 (mm) | 140 (mm) | 160 (mm) | 200 (mm) |
|---|---|---|---|---|
| Dimension A+B [mm] | min.800 / max.3000 | min.800 / max.3000 | min.800 / max.3000 | min.800 / max.3000 |
| Profile (external) | smooth, linear, microwave, | smooth, linear, microwave, | smooth, linear, microwave, | smooth, linear, microwave, |
| Profile (Internal) | smooth, linear, | smooth, linear, | smooth, linear, | smooth, linear, |
| Insulating ability [W/m2K] | 0,18 | 0,16 | 0,14 | 0,11 |
| Fire resistance (pir) | E 30/ EI 30 / EW 30 | E 30/ EI 30 / EW 30 | E 30/ EI 30 / EW 30 | E 45/ EI 45 / EW 45 |
| Reaction to fire (pir) | B-s2, d0 | B-s2, d0 | B-s2, d0 | B-s2, d0 |
| Fire spread | NRO | NRO | NRO | NRO |
| Specific sound insulation | 24 (-2;-4) | 24 (-2;-4) | 24 (-2;-4) | 24 (-2;-4) |
| Coefficient of acoustic absorption αw | 0,15 | 0,15 | 0,15 | 0,15 |
| Sheet thickness Ex./In.[mm] | 0,5-0,7 / 0,4-0,7 | 0,5-0,7 / 0,4-0,7 | 0,5-0,7 / 0,4-0,7 | 0,5-0,7 / 0,4-0,7 |
| Surface treatment | from 25μm to 200μm | from 25μm to 200μm | from 25μm to 200μm | from 25μm to 200μm |
| Corrosion resistance (vonku/vnútri) | RC3-RC5 / CPI2-CPI5 | RC3-RC5 / CPI2-CPI5 | RC3-RC5 / CPI2-CPI5 | RC3-RC5 / CPI2-CPI5 |
| Colors | 24 RAL colors | 24 RAL colors | 24 RAL colors | 24 RAL colors |
| Core density [kg/m³] | 40 ± 3 | 40 ± 3 | 40 ± 3 | 40 ± 3 |
| Weight [kg/m²] | 12,6 | 13,4 | 14,2 | 15,7 |
RAL colors offered
standard colors
premium colors
special colors
(Color must always be confirmed according to availability)
Delivery and payment
Delivery time is from 3-5 weeks to your desired address. The delivery time is specified after entering the final order. Payment is made by advance payments to the company’s account 50% in advance and 50% after the panels are in stock. They are ordered together with classic panels over 150m2. Shipping is not included in the price of the panels. Bank: Slovenská sporiteľňa Account number (IBAN): SK53 0900 0000 0003 2426 4520 BIC SWIFT code: GIBASKBX.
Customer service: Working days from 9:00 do 16:00, +421 910 107 878, obchod@panelshop.sk
Send the technical drawings and we will prepare a price offer!
We need from you everything related to project documentation such as floor plans, sections, views, dimensioned drawings, technical report, accompanying report, dwg files and send to info@paneleshop.eu
