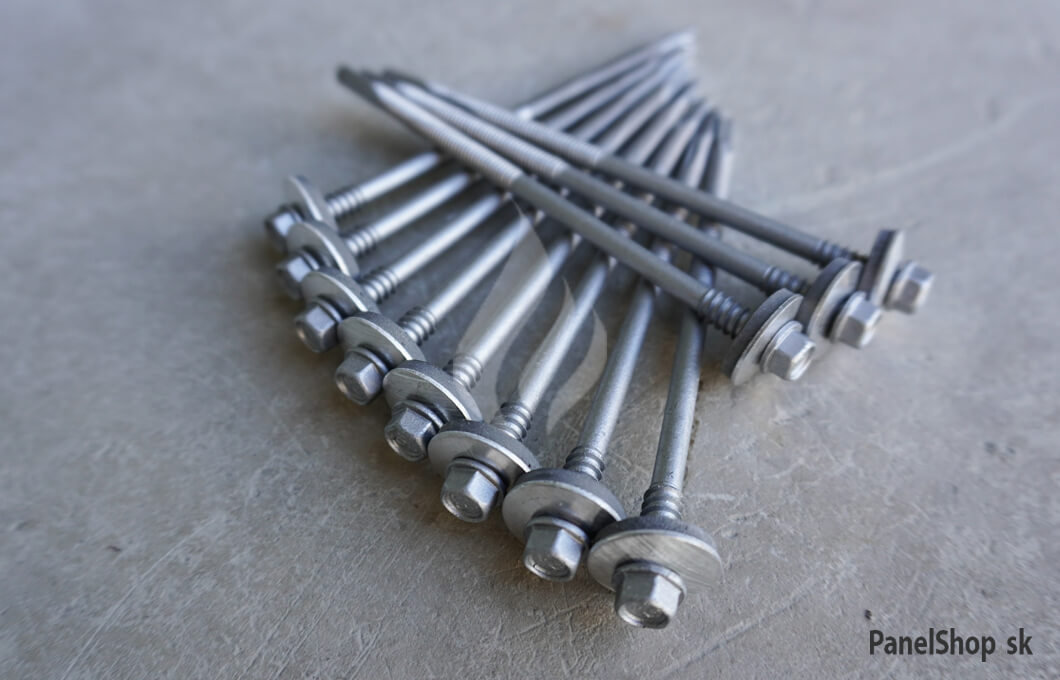

Self-tapping screws for sandwich panels in steel construction (stainless steel)
We offer TEX self-tapping screws for fixing sandwich panels to a steel structure. The self-tapping screws are made of stainless steel with a vulcanized and stainless EPDM washer. Suitable for a more demanding environment.
The diameter of the screw is 5.5 mm, the width of the head is 8 mm hexagon, the length of the drill bit is 15 mm. Screw lengths are from 65-300mm. Recommended for fixing roof and wall panels.
116€ ex.VAT / 115mm / 100 pcs (price is indicative)
Delivery time – 1 week
Product Code: PS2…
(watch a short video of self-tapping panel screws)
We offer these screw variants

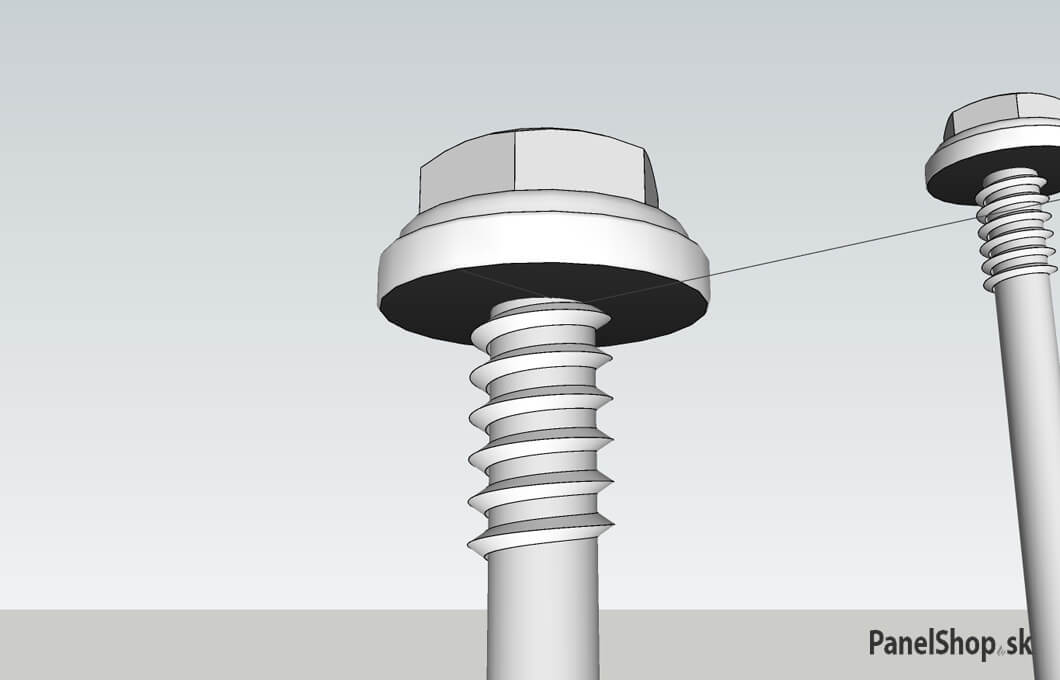

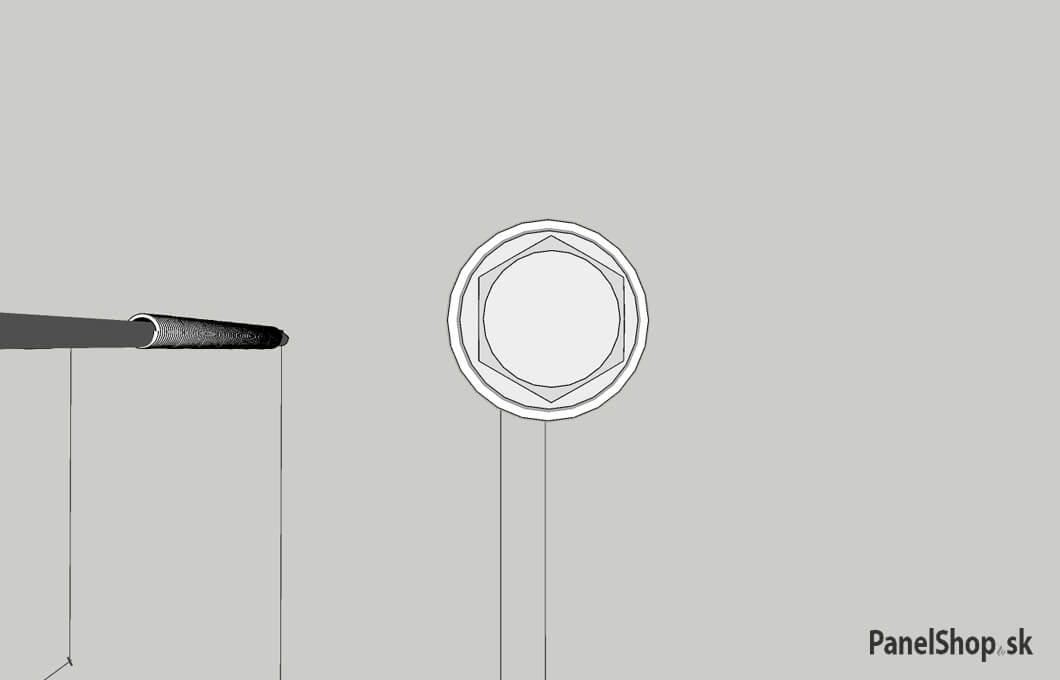

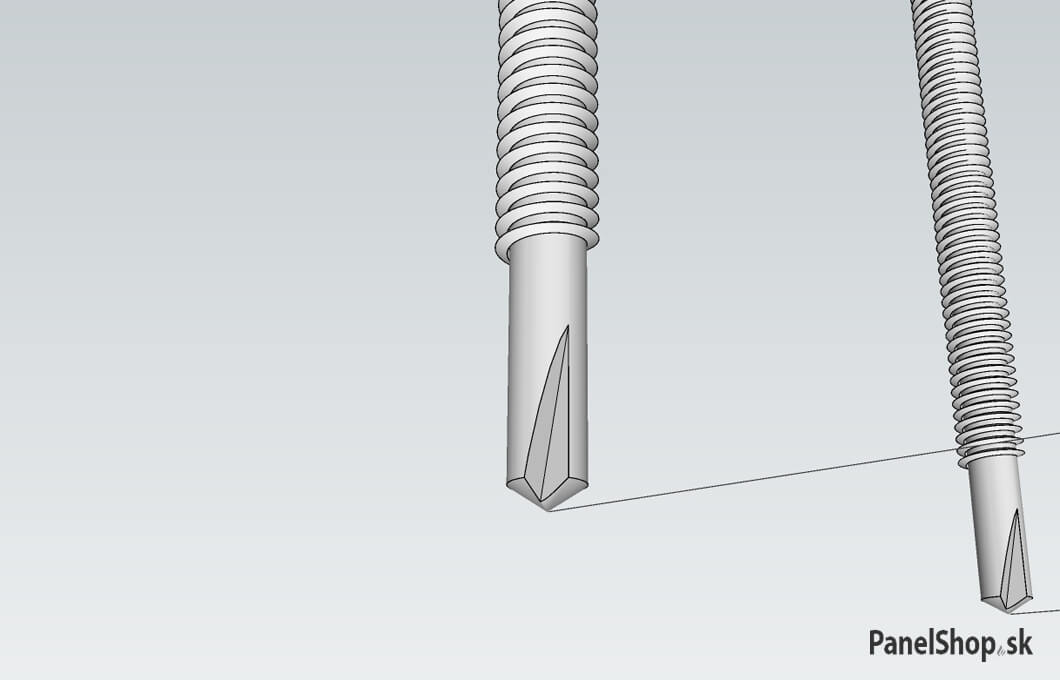

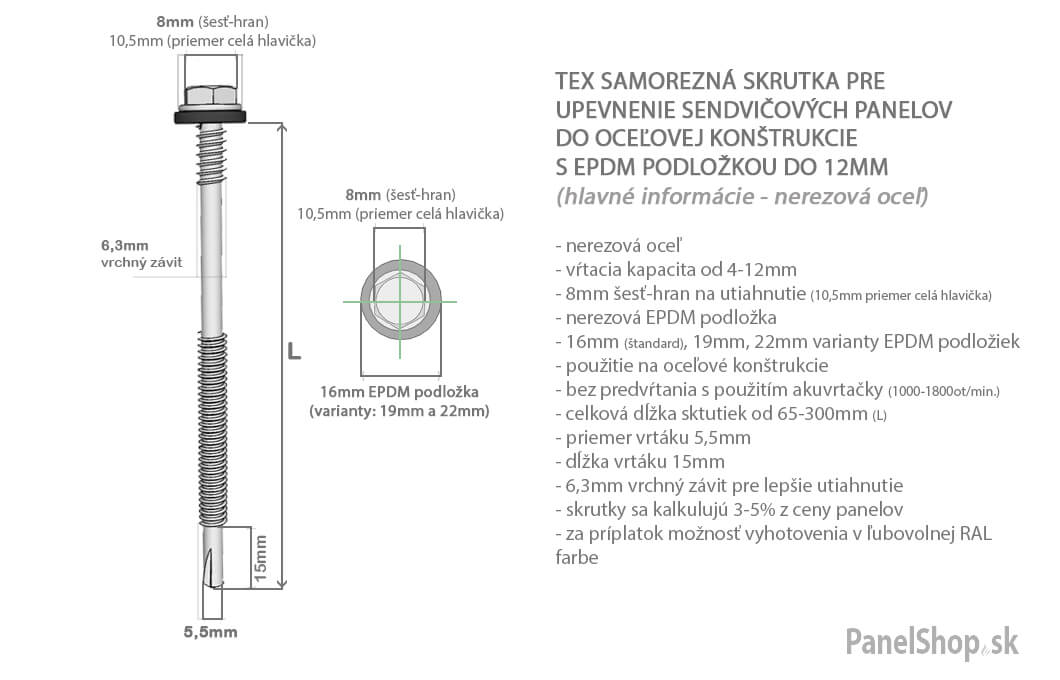

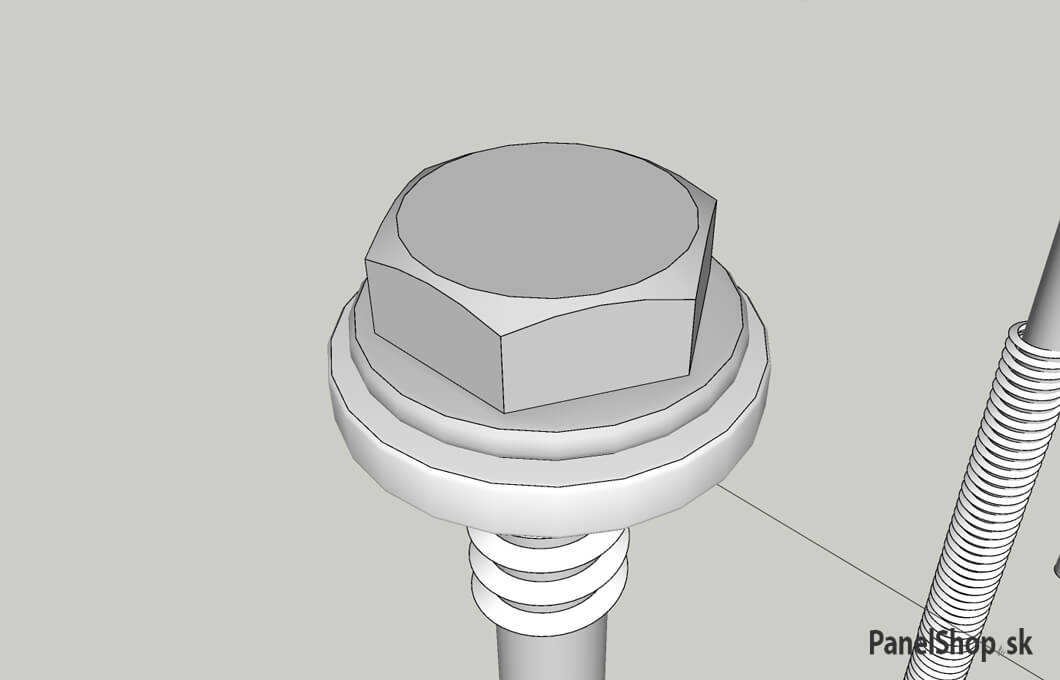

TEX self-tapping screws are made of stainless steel. Drilling capacity is from 4-12mm. Hexagonal 8mm threaded head (10.5mm diameter whole head). The EPDM washer is stainless steel in dimensions 16mm (standard), 19mm and 22mm. The use of the screw is for steel structures without pre-drilling using a battery-powered drill (1000-1800 rpm). The total length of the screws is from 75-95mm (L), drill diameter 5.5mm, drill length 15mm, 6.3mm top thread for better tightening. Screws are calculated at 3-5% of the price of the panels (when estimating the quantity). Suitable for a more demanding environment.
Swipe left on mobiles ›

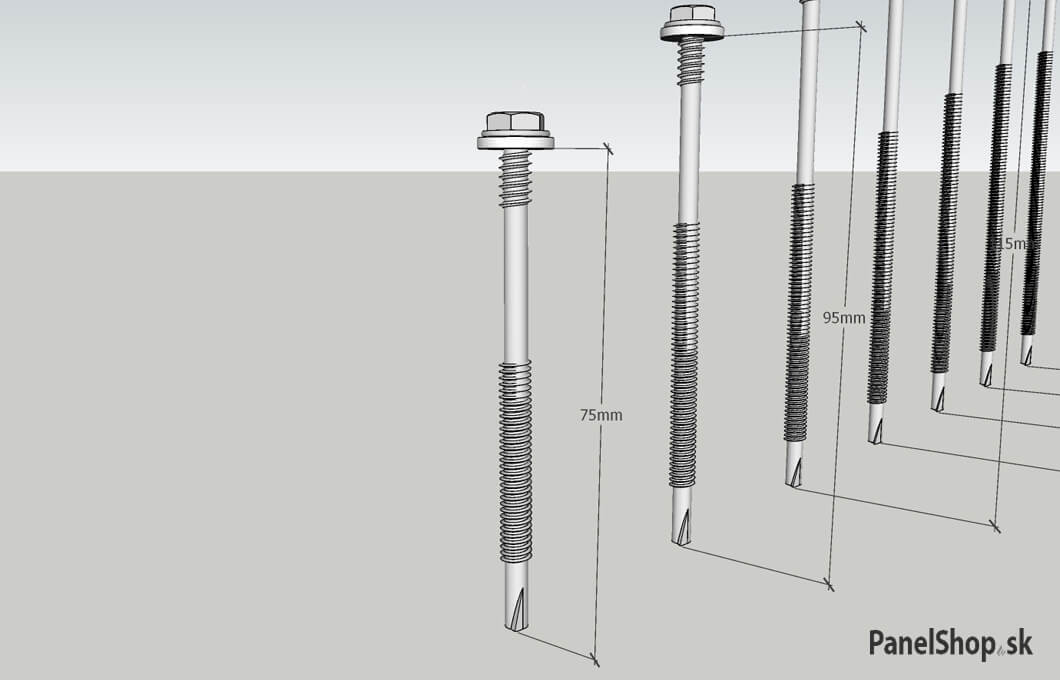

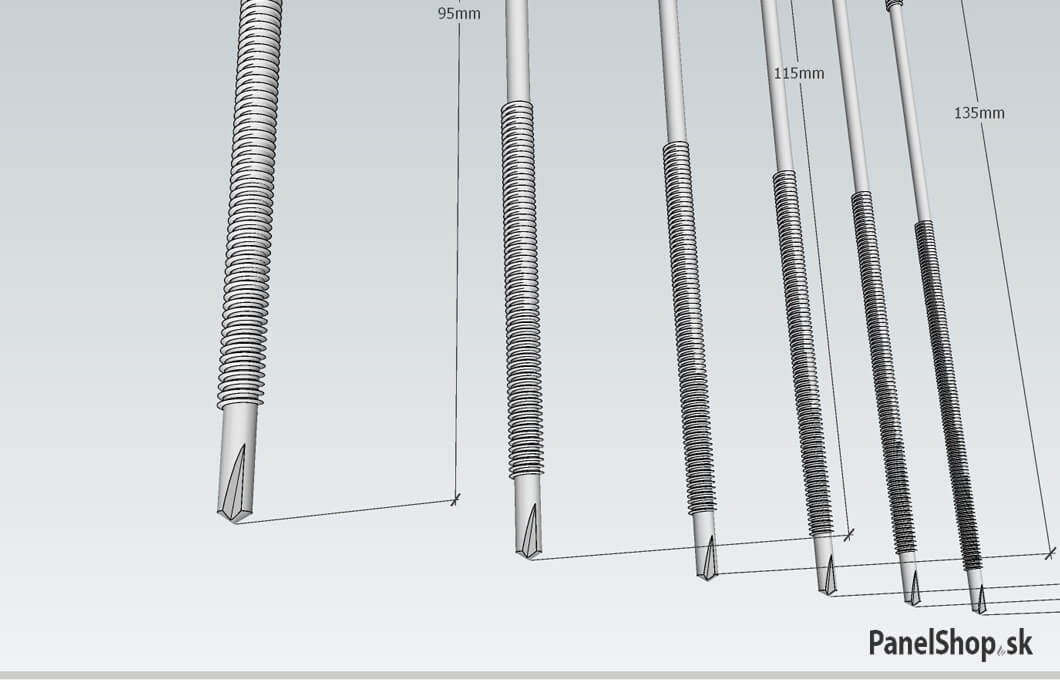

| Product Code | Bolt length (mm) | Thread diameter (mm) | Drilling capacity (mm) | Pad(EPDM) | Minimum and maximum panel thickness (mm) | Pack/pc | Price without VAT |
|---|---|---|---|---|---|---|---|
| PS2001 | 75mm | 5.5mm | 4-12mm | 19mm (standard) | 35-55mm | 100 pcs | 85€ ex. VAT |
| PS2002 | 95mm | 5.5mm | 4-12mm | 19mm (standard) | 55-75mm | 100 pcs | 102€ ex. VAT |
| PS2003 | 115mm | 5.5mm | 4-12mm | 19mm (standard) | 80-95mm | 100 pcs | 116€ ex. VAT |
| PS2004 | 135mm | 5.5mm | 4-12mm | 19mm (standard) | 100-125mm | 100 pcs | 132€ ex. VAT |
| PS2005 | 155mm | 5.5mm | 4-12mm | 19mm (standard) | 110-135mm | 100 pcs | 142€ ex. VAT |
| PS2006 | 175mm | 5.5mm | 4-12mm | 19mm (standard) | 125-155mm | 100 pcs | 172€ ex. VAT |
| PS2007 | 195mm | 5.5mm | 4-12mm | 19mm (standard) | 150-175mm | 100 pcs | 192€ ex. VAT |
Shipment and Payment
Delivery time is from 3-4 weeks to your desired address. (The delivery time is specified after entering the final order.) Payment is made by advance payments to the company account. The shipping price will be specified in the price offer. Shipping is free when ordered and delivered together with sandwich panels.
Bank: Slovenská Sporiteľňa. Account number (IBAN): SK53 0900 0000 0003 2426 4520. BIC SWIFT code: GIBASKBX. Customer service: Mon – Fri: 9:00 to 16:00, +421 910 107 878, info@paneleshop.eu
Accessories offered
Self-tapping screws
The self-tapping screws are made of stainless steel with a vulcanized and stainless EPDM washer. Suitable for a more demanding environment.
155mm / 100 pcs / 58€ without VAT
Self-tapping screws
TEX self-tapping screws for attaching sheeting elements made of high-grade galvanized steel with a vulcanized and galvanized EPDM pad.
10€ without VAT / 19mm / 100 pcs
Saddle Washers (Calots)
Used together with standard self-tapping screws with a recommended 16mm washer.
50€ / 26mm (without VAT) / 100 pcs
Flashing elements
We offer either typed or with the option of your own parameters, where you enter the width, length and angle.
7€ (without VAT) / 1bm (price is approximate)
Structural profiles
Thin-walled profiles are intended for use mainly as purlins of ceilings, roofs and walls of steel halls.
2,2€ (without VAT) / 1kg / (the price is indicative)
