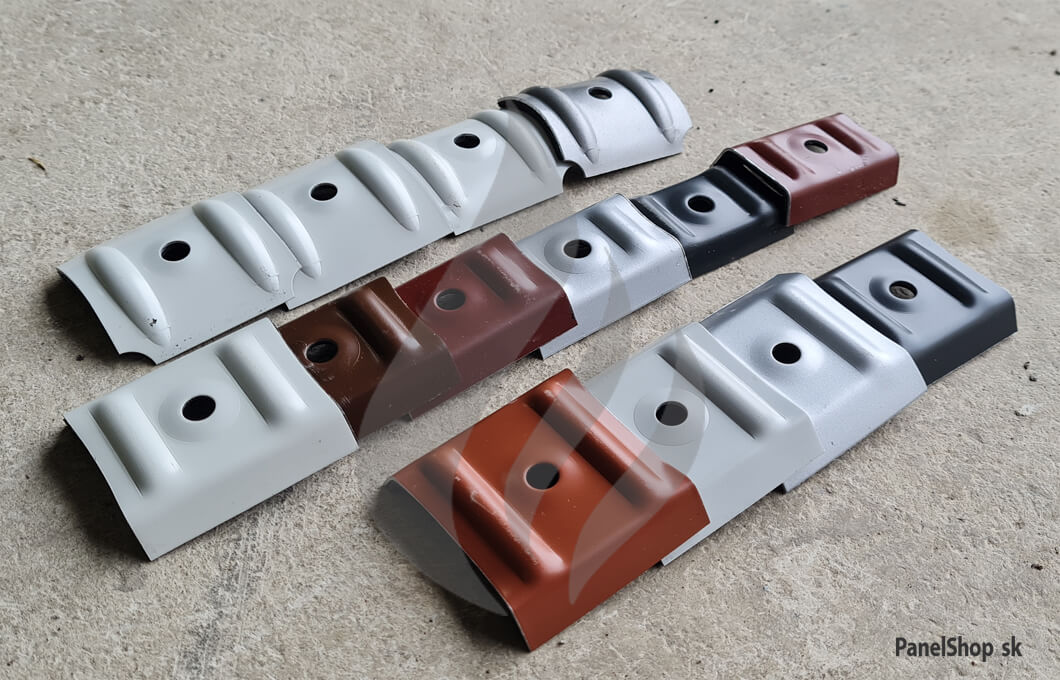

Calots for roof sandwich panels

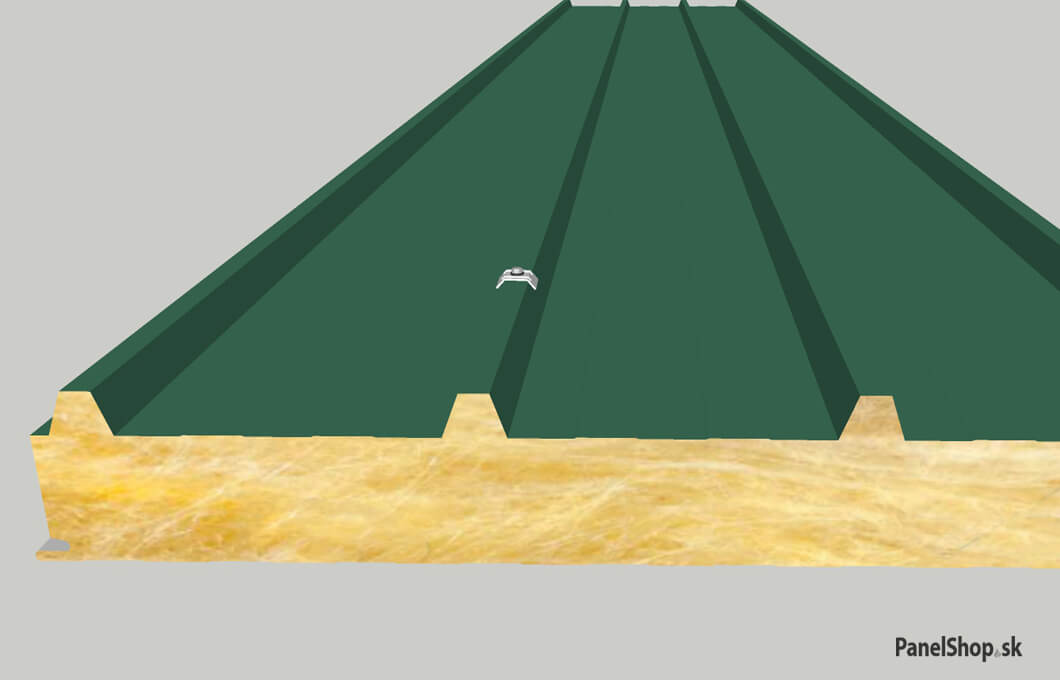

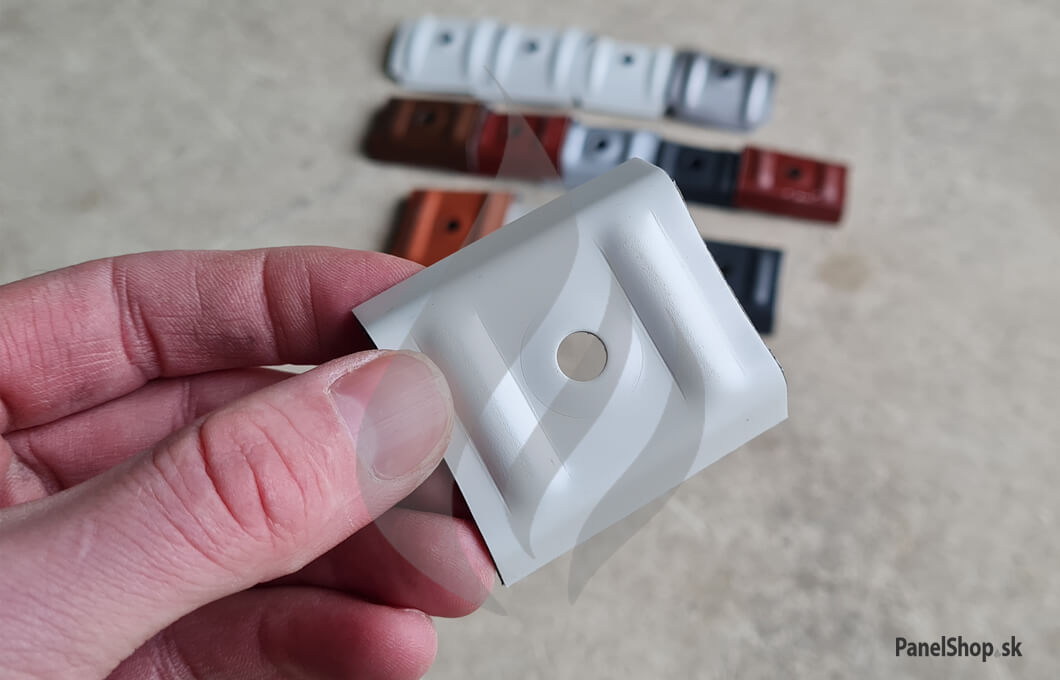

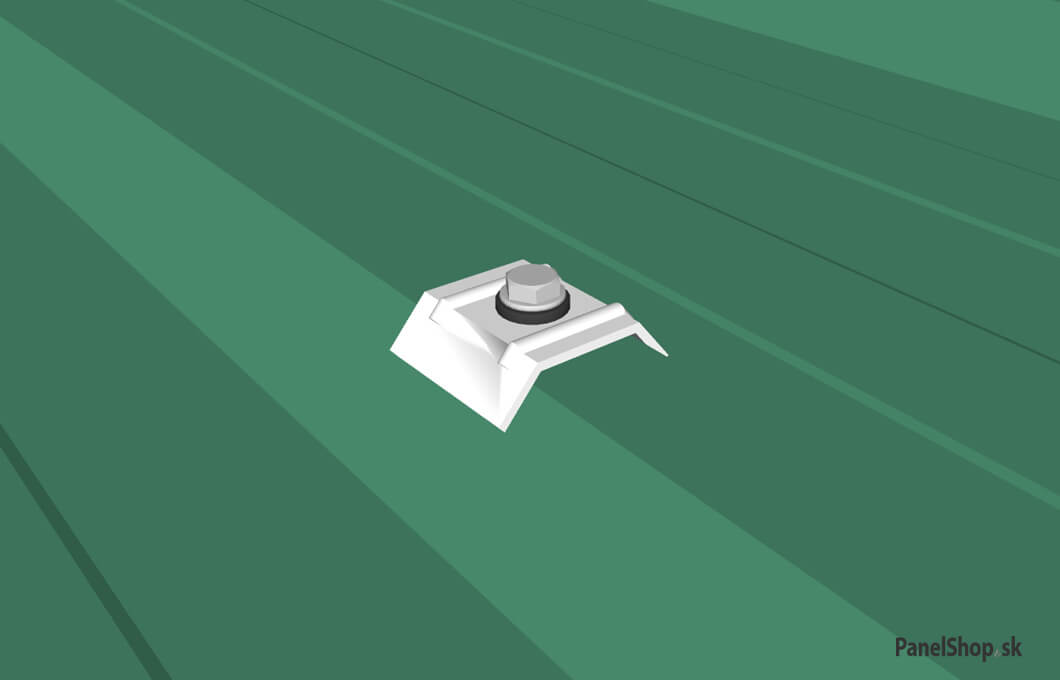

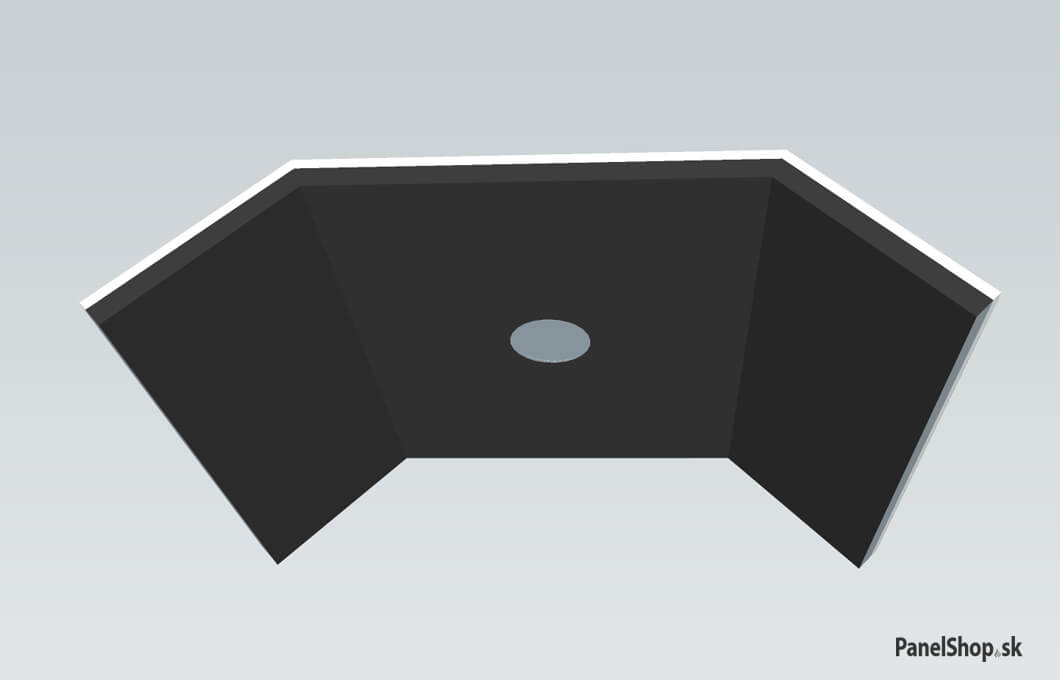

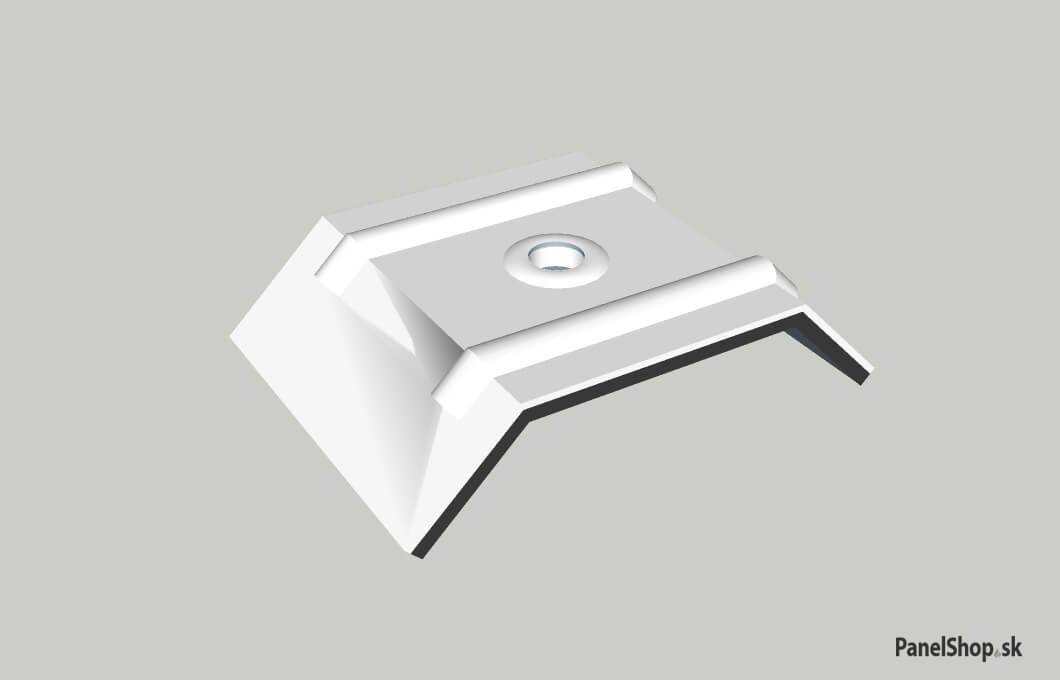

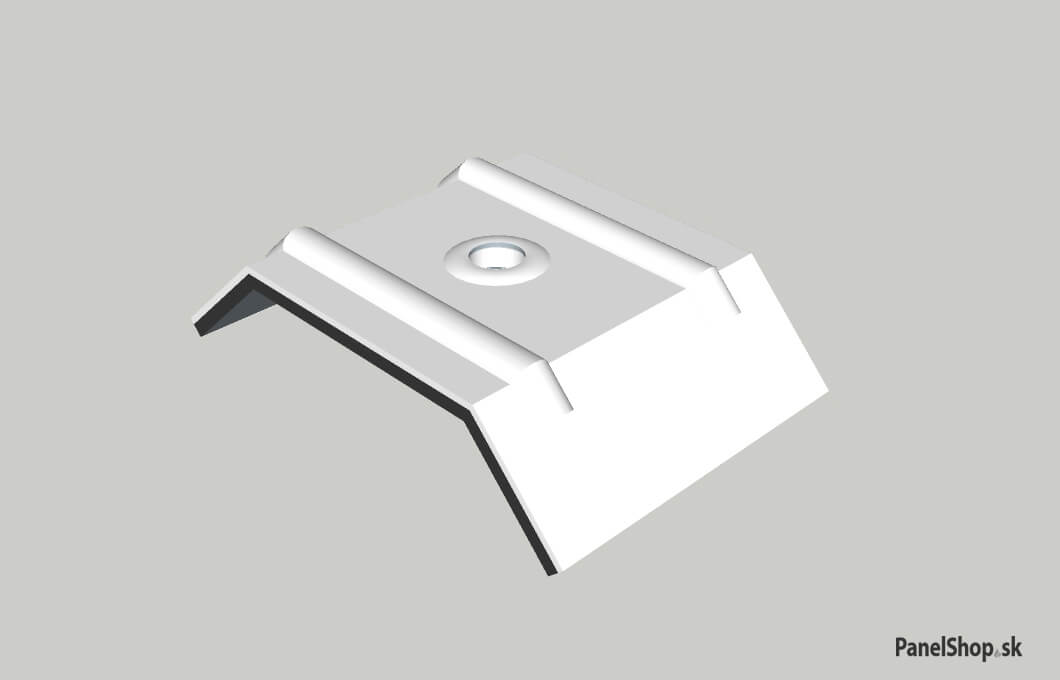

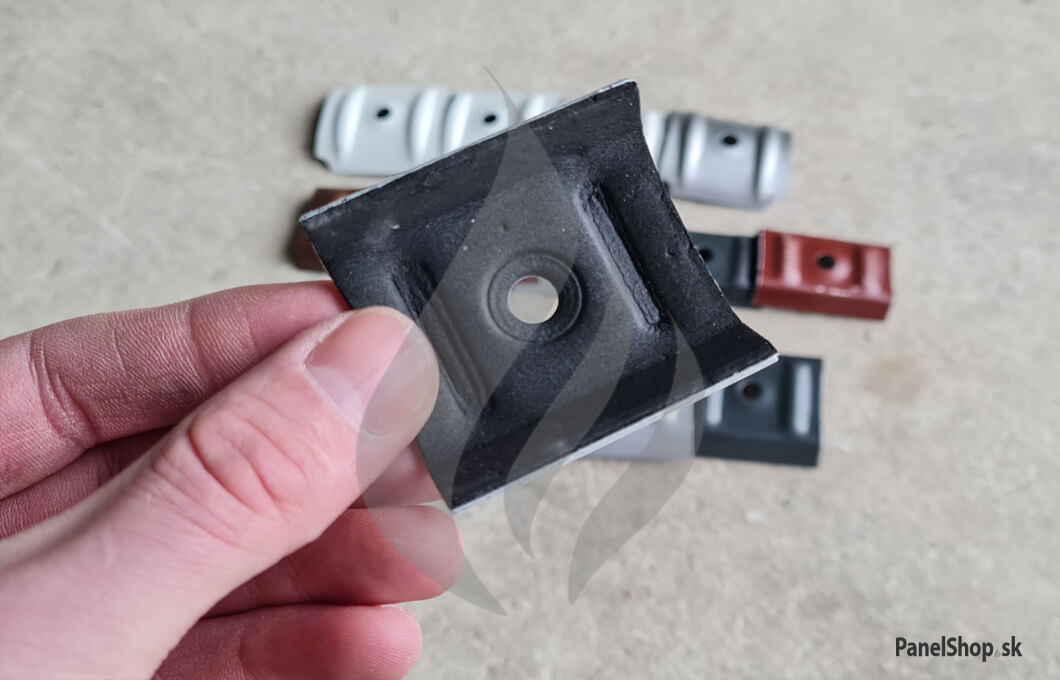

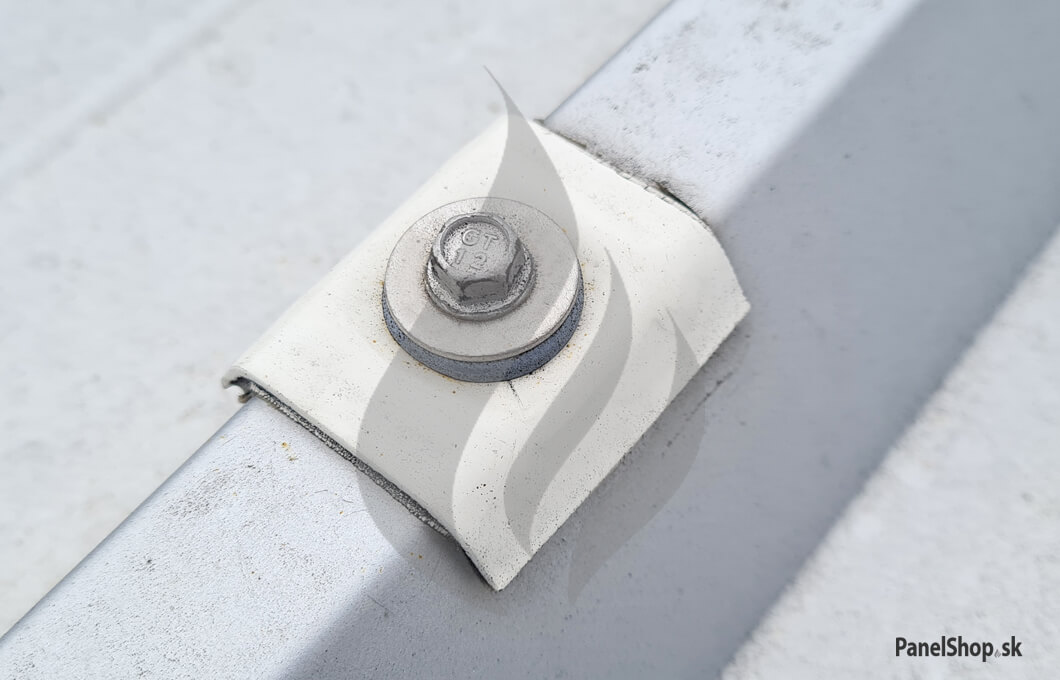

They are used to fasten roof sandwich panels to steel or wooden supporting structures. They are made of painted aluminum. Standard color RAL 9002. They are used together with standard self-tapping screws with a recommended 16mm washer. We offer all RAL colors for an additional fee. It is necessary to know the width of the dome and the angle of inclination in degrees.
50€ / 26mm (without VAT) / 100 pcs
Delivery time – 1 week
Free shipping when ordered together with sandwich panels
Product number: PK1…

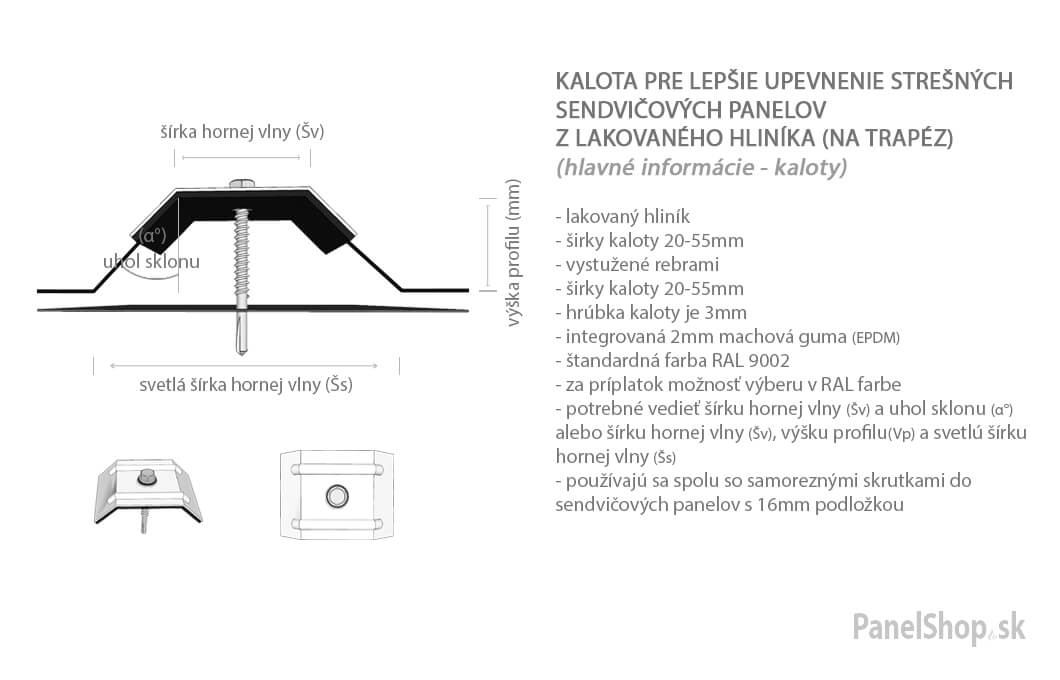

We offer these calot variants
| Product Code | Width of the cap (mm) | Inclination angle (°) |
Top wave width (mm)
|
Pack/pcs | Price without VAT |
|---|---|---|---|---|---|
| PK1001 | 20mm | 34° | 19mm | 100 pcs | 50€ ex. VAT |
| PK1002 | 21mm | 16° | 20mm | 100 pcs | 50€ ex. VAT |
| PK1003 | 26mm | 15° | 25mm | 100 pcs | 50€ ex. VAT |
| PK1004 | 26mm | 27° | 25mm | 100 pcs | 50€ ex. VAT |
| PK1005 | 26mm | 34° | 25mm | 100 pcs | 50€ ex. VAT |
| PPK1006 | 31mm | 37° | 30mm | 100 pcs | 50€ ex. VAT |
| PK1007 | 32mm | 25° | 31mm | 100 pcs | 50€ ex. VAT |
| PK1008 | 35mm | 23° | 34mm | 100 pcs | 50€ ex. VAT |
| PK1009 | 36mm | 40° | 35mm | 100 pcs | 50€ ex. VAT |
| PK1010 | 41mm | 16° | 40mm | 100 pcs | 50€ ex. VAT |
| PK1011 | 41mm | 32° | 40mm | 100 pcs | 50€ ex. VAT |
| PK1012 | 53mm | 36° | 52mm | 100 pcs | 50€ ex. VAT |
| PK1013 | 55mm | 32° | 54mm | 100 pcs | 50€ ex. VAT |
Shipment and Payment
Delivery time is within 1 week to your desired address. (The delivery time is specified after entering the final order.) Payment is made to the company account in advance or cash on delivery. The shipping price will be specified in the price offer. Shipping is free when ordered and delivered together with sandwich panels.
Bank: Slovenská Sporiteľňa, Account number (IBAN): SK53 0900 0000 0003 2426 4520, BIC SWIFT code: GIBASKBX. Customer service: Mon – Fri: 9:00 to 16:00, +421 910 107 878, info@paneleshop.eu
Some basic information about accessories
You will certainly need accessories to complete the pre-assembled sandwich construction. Among the most important are self-tapping screws with EPDM washer for fixing roof and wall panels, calots for better fixing roof panels (more stressed joints), EPDM sealing tape, important for sealing joints when plating roofs and sheeting elements (linings) rainwater drainage.
Accessories offered
Self-tapping screws
The self-tapping screws are made of stainless steel with a vulcanized and stainless EPDM washer. Suitable for a more demanding environment.
155mm / 100 pcs / 58€ without VAT

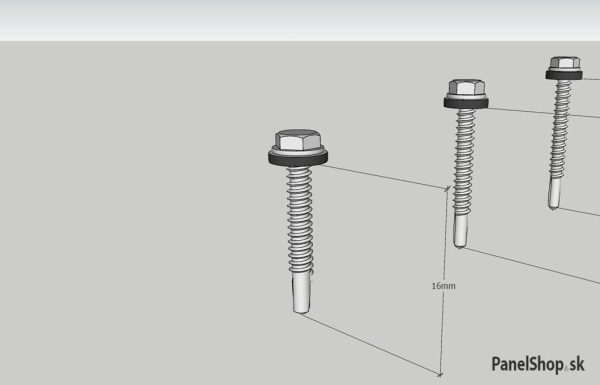

Self-tapping screws
TEX self-tapping screws for attaching sheeting elements made of high-grade galvanized steel with a vulcanized and galvanized EPDM pad.
10€ without VAT / 19mm / 100 pcs
Saddle Washers (Calots)
Used together with standard self-tapping screws with a recommended 16mm washer.
50€ / 26mm (without VAT) / 100 pcs
Flashing elements
We offer either typed or with the option of your own parameters, where you enter the width, length and angle.
7€ (without VAT) / 1bm (price is approximate)
Structural profiles
Thin-walled profiles are intended for use mainly as purlins of ceilings, roofs and walls of steel halls.
2,2€ (without VAT) / 1kg / (the price is indicative)
